FBZR Right Angle Planetary Gear Reducer

The FBZR Series is a right-angle precision planetary gearbox designed for servo motor applications where space constraints require 90° power transmission — combining high torque density, low backlash and a compact design for precision automation, robotics and CNC machinery.

Right-Angle Output

90° output shaft orientation saves installation space in compact servo-driven systems.

High Torque Density

Planetary gear transmission delivers high output torque in a compact, robust housing.

Low Backlash

Available in P2 standard with higher precision P1/PO grades for accurate positioning.

Quiet Operation

Precision-machined gears reduce operating vibration and transmission noise.

Product Gallery

Multiple Views

360° Interactive View

Rotate & Inspect

360° Drag to rotate

Frame 1 of 1 · Drag horizontally or use auto-rotate

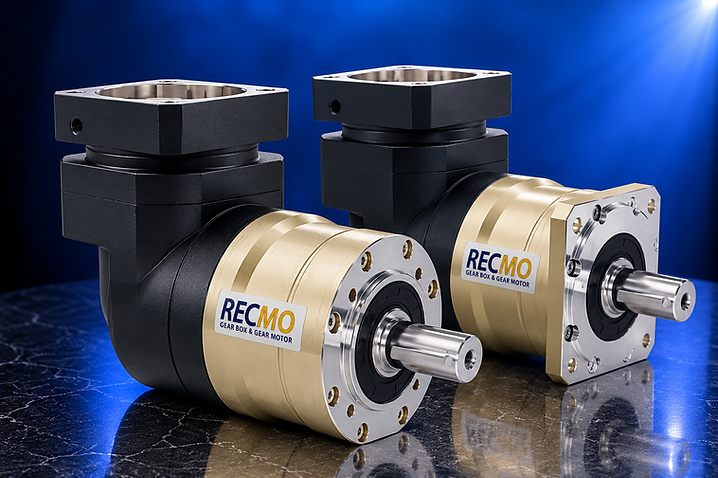

Right-angle precision planetary gearbox (FBZR series) designed for servo motor applications requiring 90° power transmission
Compact 90° output shaft orientation saves installation space and improves machine layout flexibility
Available in frame sizes FBZR090, FBZR115 and FBZR142 (larger sizes available on request)
Single-stage (L1) and double-stage (L2) reduction options for flexible ratio selection
Low backlash performance — P2 standard grade with P1 and PO higher precision options available
Output shaft options: S1 smooth straight shaft and S2 straight shaft with keyway
High torque density suitable for high-load automation and robotics applications
High input speeds up to 10,000 rpm typical for precision planetary gearboxes
High transmission efficiency — ≥97% single stage, ≥94% double stage
Maintenance-free operation with synthetic grease and lifetime lubrication
Compact and robust construction — aluminum housing for smaller sizes, cast iron for larger
Customizable input flange dimensions tailored to specific servo motor models
