FGR-080-L2 High Performance Right Angle Planetary Gear Reducer
The SKGR FGR-080-L2 is a high-performance 90° right-angle planetary gearbox — dual stage, 12:1–200:1 ratios, P2 standard backlash (≤15 arcmin), 100–160 Nm nominal torque, ≥94% efficiency and a 60 servo motor adapter for precision automation and robotics.
90° Right-Angle Output
Compact right-angle planetary design minimizes installation space and improves layout flexibility.
Dual-Stage High Ratio
L2 two-stage configuration with 16 ratios from 12:1 to 200:1 for high reduction in one unit.
P2 Standard Backlash
≤15 arcmin backlash for reliable positioning accuracy in standard servo applications.
≥94% Efficiency
High transmission efficiency with lifetime synthetic grease lubrication — maintenance-free.

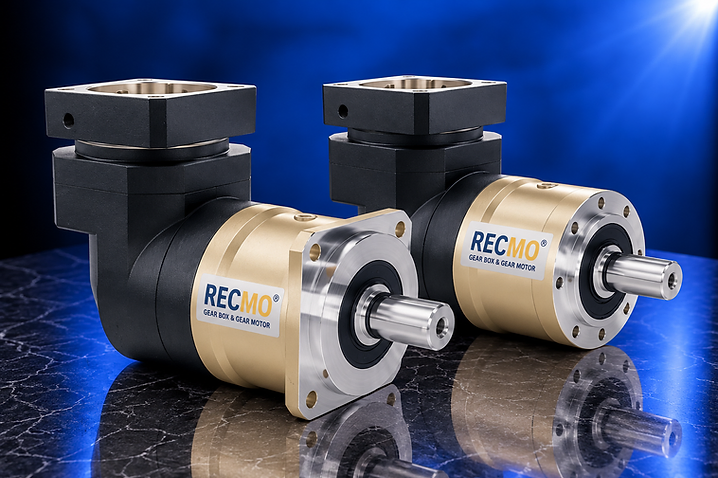

Multiple Views
Rotate & Inspect
Frame 1 of 1 · Drag horizontally or use auto-rotate
- High-performance right-angle planetary gear reducer with 90° output for servo motion control
- Dual stage (L2) configuration with 16 ratios from 12:1 to 200:1 for high reduction ratios
- P2 standard backlash class (≤15 arcmin) for accurate positioning in industrial automation
- Nominal output torque 100–160 Nm with intermittent peak torque up to 480 Nm
- Maximum input speed 8,000 RPM with ≥94% transmission efficiency
- 60 servo motor adapter with precision-machined interface for direct motor mounting
- Output shaft diameter ΦD 22 mm (S2 keyed shaft) for secure load connection
- Max allowable radial force 3,250 N and axial force 1,625 N for robust load handling
- IP65 ingress protection with synthetic grease lifetime lubrication — maintenance-free
- Compatible with Omron, Panasonic, ABB, Delta, Estun and other mainstream servo motors
