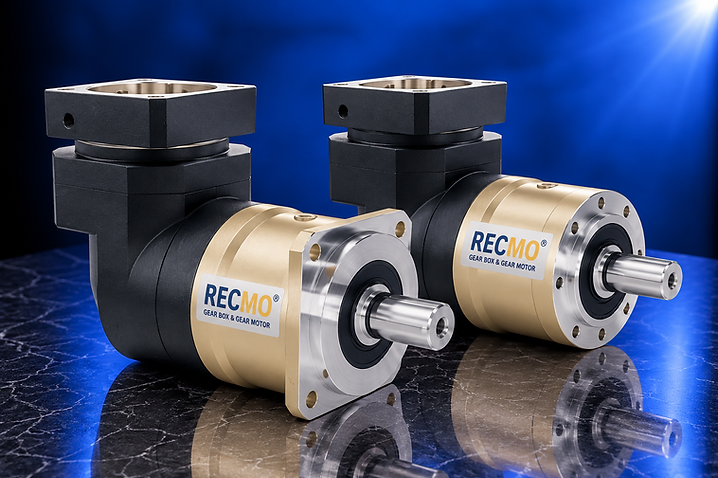

FGR-120-L1 High Performance Right Angle Planetary Gear Reducer
The SKGR FGR-120-L1 is a high-performance 90° right-angle planetary gearbox — single stage, 3:1–20:1 ratios, P2 standard backlash (≤13 arcmin), 208–330 Nm nominal torque, ≥97% efficiency and a 130 servo motor adapter for precision automation and heavy-duty robotics.
90° Right-Angle Output
Compact right-angle planetary design minimizes installation space and improves layout flexibility.
Single-Stage Precision
L1 single-stage configuration with 9 ratios from 3:1 to 20:1 for high-torque single-pass reduction.
P2 Standard Backlash
≤13 arcmin backlash for reliable positioning accuracy in standard servo applications.
≥97% Efficiency
High single-stage transmission efficiency with lifetime synthetic grease lubrication — maintenance-free.
Multiple Views
Rotate & Inspect
Frame 1 of 1 · Drag horizontally or use auto-rotate
- High-performance right-angle planetary gear reducer with 90° output for servo motion control
- Single stage (L1) configuration with 9 ratios from 3:1 to 20:1 for high-torque single-pass reduction
- P2 standard backlash class (≤13 arcmin) for accurate positioning in industrial automation
- Nominal output torque 208–330 Nm with intermittent peak torque up to 990 Nm
- Maximum input speed 8,000 RPM with ≥97% transmission efficiency
- 130 servo motor adapter with precision-machined interface for direct motor mounting
- Output shaft diameter ΦD 32 mm (S2 keyed shaft) for secure heavy-duty load connection
- Max allowable radial force 6,700 N and axial force 3,350 N for robust heavy-load handling
- IP65 ingress protection with synthetic grease lifetime lubrication — maintenance-free
- Compatible with Omron, Panasonic, ABB, Delta, Estun and other mainstream servo motors
