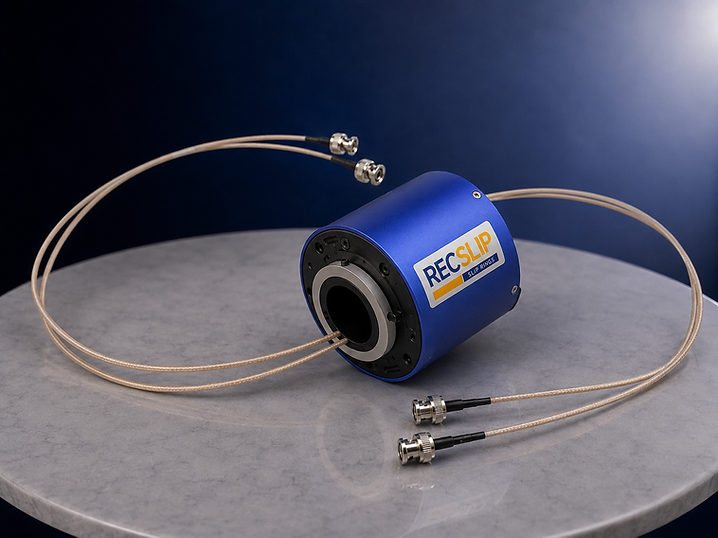

Medium Frequency Slip Ring
A medium frequency slip ring engineered to transmit RF signals up to 500 MHz alongside power and control circuits — with 50Ω impedance matching, low VSWR (<1.5:1) and shielded coaxial channels terminated in BNC, SMA or N-type connectors for signal integrity under continuous rotation.
Medium Frequency Transmission
Transmits RF signals up to 500 MHz alongside power and control circuits.
Low VSWR
VSWR below 1.5:1 across the operating band for minimal signal reflection.
50Ω Impedance
Precise 50 ohm impedance matching for signal integrity.
Shielded Coaxial Channels
BNC, SMA or N-type connectors with shielded coaxial paths.
Product Gallery
Multiple Views
360° Interactive View360° Drag to rotate
Rotate & Inspect
Frame 1 of 2 · Drag horizontally or use auto-rotate
- Transmits medium frequency RF signals alongside power and control circuits
- 50 ohm impedance matching for minimal signal reflection
- Low VSWR (<1.5:1) across the full operating frequency band
- BNC, SMA or N-type connector options available
- Frequency range from DC up to 500 MHz
- Shielded coaxial channels maintain signal integrity under rotation
Request a Custom Quote
Share your frequency band, channel count and connector requirements — we'll engineer the right MF slip ring for you.
